Shutter Door Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CCC, SGS, ISO9001, CE |
| Model Number | SM-SD |

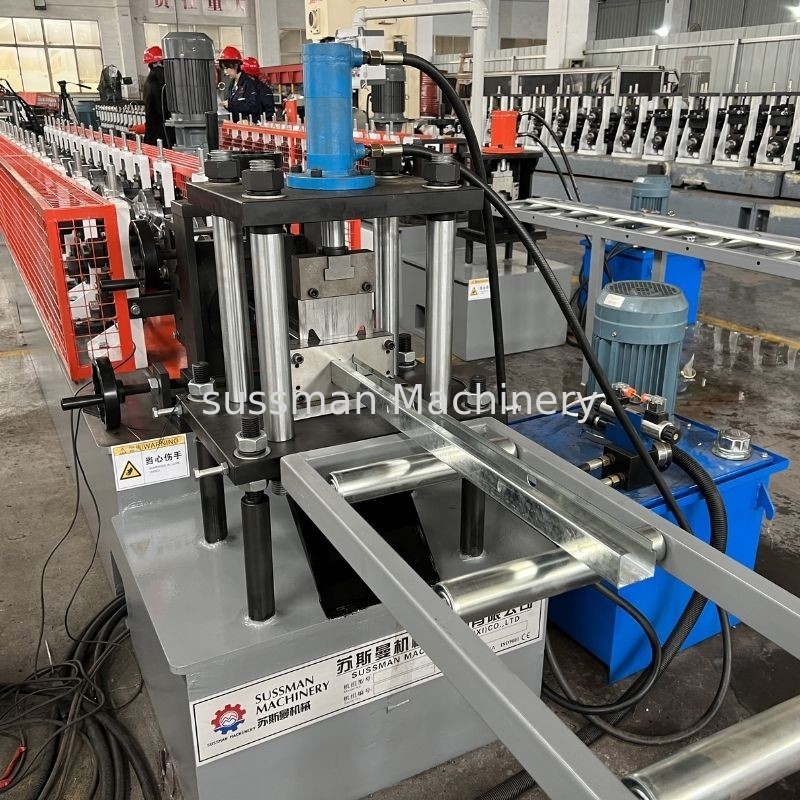

1.3 Mm-1.5 Mm Galvanized Steel Coils C Profile Shutter Door Rail Roll Forming Machine With Notch
We manufacture steel shutter door, steel garage door, door seaming machine, door packaging machine, door guide rail,rolling shutter door bottom machine,etc.
The completed production line is with components of Decoiler, Hydraulic punching to make notch hole, Roll forming machine,hydraulic cutting system, Electrial control system and out put tables.
Our Shutter door roll forming machines have made and exported to many oversea countries,like America, Chile, Combolia, Nicaragua,Algeria,South Africa,etc.
Shutter Door Machine Technical parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 1.3mm-1.5mm galvanized coils |
| De-coiler | Weight | 3 tons automatic |
| Forming system | Rolling Speed | About 3-5 m/min(including punching and cutting time) |
| Roller Stations | About 16 stations forming | |
| Roller Material | Gcr15 steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Main Motor Power | 7.5 kw | |
| Hydraulic punching motor | 4Kw | |
|
Cutting system |
Method of cutting | Saw cutting |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
220V, 60HZ,3 phase or customized
|
| Control System | PLC with touch screen | |
| Weight | About 5 tons | |
| Way Of Drive | Chain | |
| Size of machine | About Length 7500mm* Width 800mm* Height 1200m |
Shutter Door Machine Main Components
| Name | Quantity (set) |
| 3T Automatic De-coiler | 1 set |
| Hydraulic punching device | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Run out tables | 2 sets |
| Control box | 1 set |
Rolling Shutter Door Machine Working Flow
De-coiler—→feeding with guide—→main roll forming machine—→hydraulic cutting&punching —→ run out table
Advantage for our roller shutter
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Rolling Shutter Door Machine Profile Drawing
