0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute
  • 0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute
  • 0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute
  • 0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute
  • 0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute
  • 0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute

0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute

Place of Origin China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SM-SD-045
Product Details
Type:
High Speed Metal Shutter Door Roll Forming Machine
Working Speed:
0-30 Meters/minute
Motor Power:
7.5KW
Material:
0.7-1.2mm Thickness
High Light:

Metal Shutter Door Roll Former

,

1.2mm Metal Shutter Door Roll Former

,

30M/Min Shutter Door Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 15,000 per set
Packaging Details
standard film
Delivery Time
30-90 days
Supply Ability
5 sets per month
Product Description

0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine with 0-30 Meters/Minute



Rolling shutter door is produced by rolling shutter making machine and are used for parking door and home doors ans shops front show and garages, etc. They are very strong and sage to the property. Therefore, the door-rolling shutter provides adequate protection and safety against thefts and fire. These doors are stronger if use enough steel thickness.



In fact, we can supply different kinds of roll forming machines for different shutter doors. If you have your door design, show us your design drawing. A good suggestion can be given out by our enginneer. If you have any idea about your new project, some professional ideas can be gotten from us.



This metal shutter door roll forming machine is high speed, it can reach to 30 meters/minute.

The Technique Data


Material of coil

Material Thickness

0.7-1.2 mm galvanized



Un Coiler

3 tons manual

Forming system

Rolling Speed

About 0-30 m/min



Roller Stations

About 12 stations



Roller Material

Gcr15# Steel with quenching 60mm shaft



Maim Motor Power

7.5 kw



Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12Mov with quench treatment



Hardness

HRC58-62



Tolerance

+-1.5mm

Electrical control system

Electric Source

380V, 50HZ,3 phase



Control System

PLC with touch screen



Weight

About 4 tons



Way Of Drive

1 inch single chain



Size of machine

About Length 8500mm* Width 600mm* Height 1000mm





Working flow:


Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting→ Run out table


Machine List
Name
Quantity (set)
De-coiler
1set
Hydraulic cutting device
1set
Main roll forming machine with lubrication
1set
Hydraulic cutting device
1set
Hydraulic punching for Punching Waist Hole& Riveted(remachado) System
5 sets
Run out table
2 sets
Control box
1set

0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute 0



Profile drawing

0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute 1

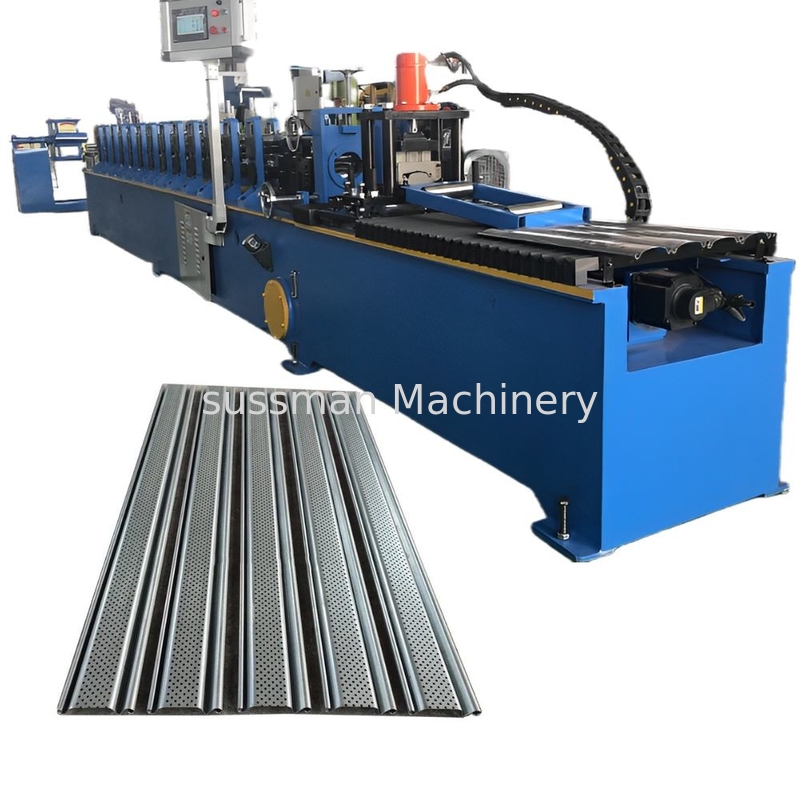

Machine Picture Shows

0.7mm-1.2mm Thickness Metal Shutter Door Roll Forming Machine With 0-30 Meters/Minute 2
