0.5-1.0mm Non-Insulated Garage Door Panel Roll Forming Machine Galvanized Steel 450- 610mm

Place of Origin	Wuxi Jiangsu China
Brand Name	Sussman
Certification	CE
Model Number	SM-PUSD

Product Details

Sheet Material Thickness:

0.5-0.8MM

Process Material:

Galvanized Steel, PPGI

Main Motor Power:

11Kw

Speed:

8-12m/min

Warranty:

12 Months Guarantee

Roller Stations:

16 Rollers

Highlight:

Galvanized Door Panel Roll Forming Machine

1.0mm Door Panel Forming Machine

610mm Door Panel Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard Packing

Delivery Time

60 days after deposit

Payment Terms

T/T, L/C, D/P, Western Union, MoneyGram

Supply Ability

10 sets per month

Product Description

0.5-1.0mm Non-Insulated Garage Door Panel Roll Forming Machine Galvanized Steel 450- 610mm

Technical Parameter

Material of coil	Material Thickness	0.5mm galvanized coils
	Un Coiler	5 tons manual
Forming system	Rolling Speed	About 10 meters /minute
	Roller Stations	About 28-32 stations
	Roller Material	No.45 steel coated with chrome
	Maim Motor Power	7.5 kw
	Motor cutting Power	4 kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC as list in the note
	Weight	About 10 tons
	Way Of Drive	1.2 inch chain

Main Components

1	5 tons passive Decoiler	1 set
2	Guide Feeding device	1 set
3	main forming machine	1 set
4	Hydraulic stop cutting machine	1 set
5	finished products table	1 set
6	PLC control system	1 set
7	Spare Parts And Tools	1 set

Working Flow of garage door panel Roll Forming Machine

Decoiler—feeding device—main forming— Cutting ---run out table

Profile of product

The 24 or 25 gauge non-insulated steel, deep ribbed, commercial sectional garage doors are a great alternative option that is durable and economical.

The width of the Sectional garage door panel can be adjustable, such as 457mm, 530mm 610mm.

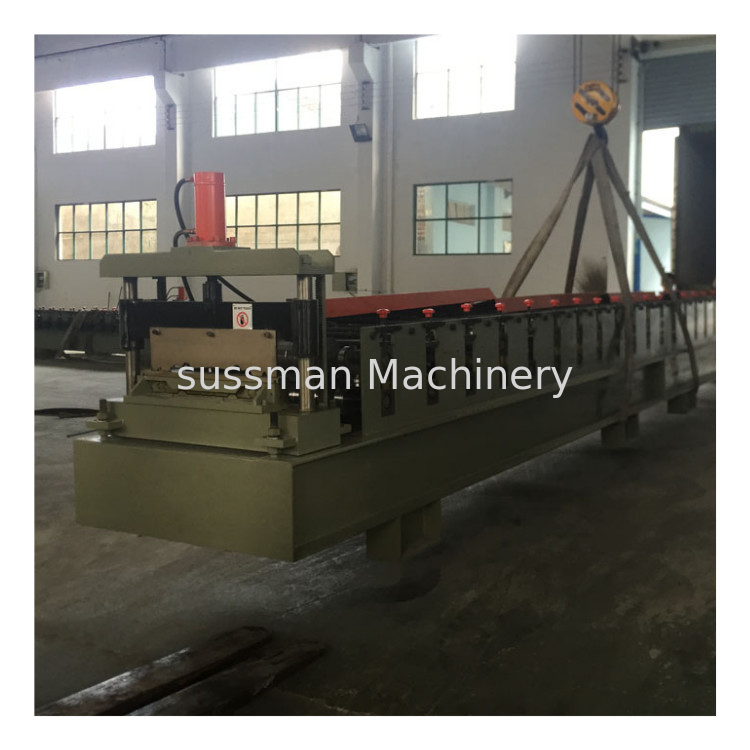

0.5-1.0mm Non-Insulated Garage Door Panel Roll Forming Machine Galvanized Steel 450- 610mm 1

Photo Gallery

0.5-1.0mm Non-Insulated Garage Door Panel Roll Forming Machine Galvanized Steel 450- 610mm 2

Loading pictures

0.5-1.0mm Non-Insulated Garage Door Panel Roll Forming Machine Galvanized Steel 450- 610mm 3
