22 Gauge Steel Overhead Garage Door Garage Door Struts "U Bar" Roll Forming Machine
This machine is to make Reinforcement U-Bar Strut Support Brace for Horizontal Garage Door

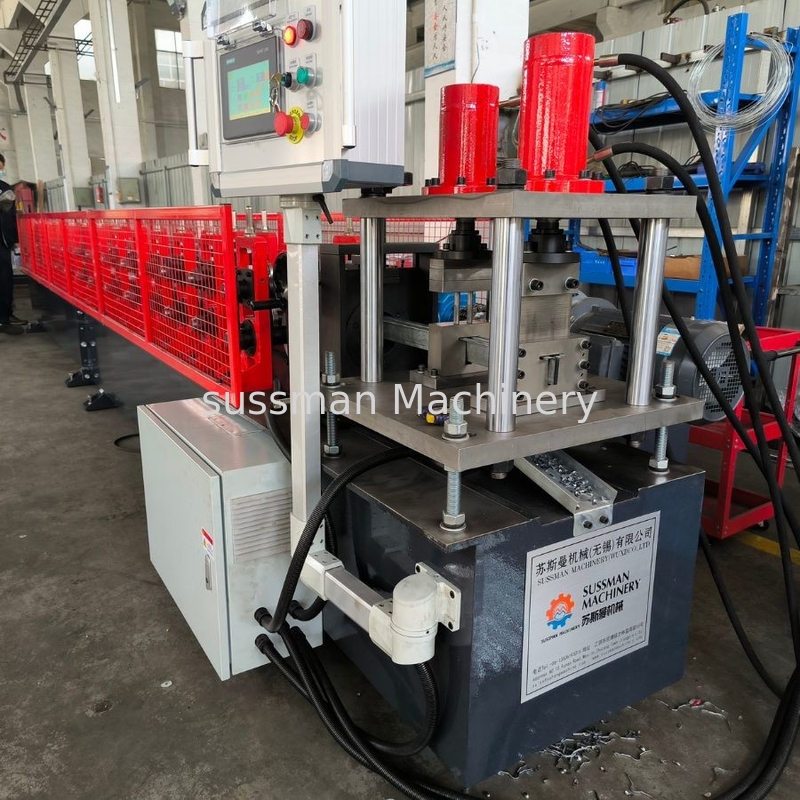

This production line includes 3 tons decoiler, roll forming machine, hydraulic post-punching to make the holes,hydraulic cutting to the length you set, and receiving table for finished U bar strut.
Garage door strut machine technical parameter
|
No.
|
Item Name
|
Specification
|
|
1
|
Feeding width
|
Customized as customer' drawing
|
|
2
|
Thickness of panel
|
0.5-1.2 mm 22 gauge steel
|
|
3
|
Roller station
|
14 stations
|
|
4
|
Shaft Diameter
|
60 mm
|
|
5
|
Productivity
|
8-12 m/min
|
|
6
|
Rollers' material
|
45# steel with quenched 0.05mm chrome
|
|
7
|
Shaft material
|
45# steel with 0.05mm chrome
|
|
8
|
Weight
|
3 tons
|
|
9
|
Size
|
About 6.5*0.8*1.2m
|
|
10
|
Voltage
|
220V 60Hz 3phases
|
|
11
|
Control
|
PLC
|
|
12
|
Decoiler
|
3 tons
|
|
13
|
Motor
|
5.5*2 kw
|
|
14
|
Driving way
|
Chain drive
|
|
15
|
Cutting system
|
Hydraulic stop cutting
|
Garage door strut machine components
| S.N |
Equipment name
|
| 1 |
3 Tons manual un-coiler
|
| 2 |
Feeding with guide
|
| 3 |
Main roll forming machine
|
| 4 |
Hydraulic punching and cutting device
|
| 5 |
Control system (including control box)
|
| 6 |
4 meters passive out table
|
| 7 |
Spare Parts
|
Garage Door Strut Profile
1.Garage door struts are long steel bars that are installed horizontally on the interior of your garage door. Screwed into the exposed interior of your garage door, they provide support and reinforcement.
2.Without struts, the weight of your garage door can cause it to bend or bow over time. This leaves you with damaged panels and likely a broken garage door opener. That is why Aaron Overhead Doors also uses multiple high-quality struts on all our new garage door installations.
3.Support struts allow your garage door to open and close smoothly while remaining strong and reliable.
4.Different model garage doors have different outside center stiles. The included self tappers will drill holes in the strut to attach it to your stiles no matter their placement.
Our advantage
1) We have about 12 years experience in steel machine line, experienced workers and engineers.
2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
3) On time delivery.Oversea engineers services available.
4) Adopt newest tech across the world to ensure our quality, provide customers good quality machines with best price.
5) Favourtie price for machine parts all the life.
