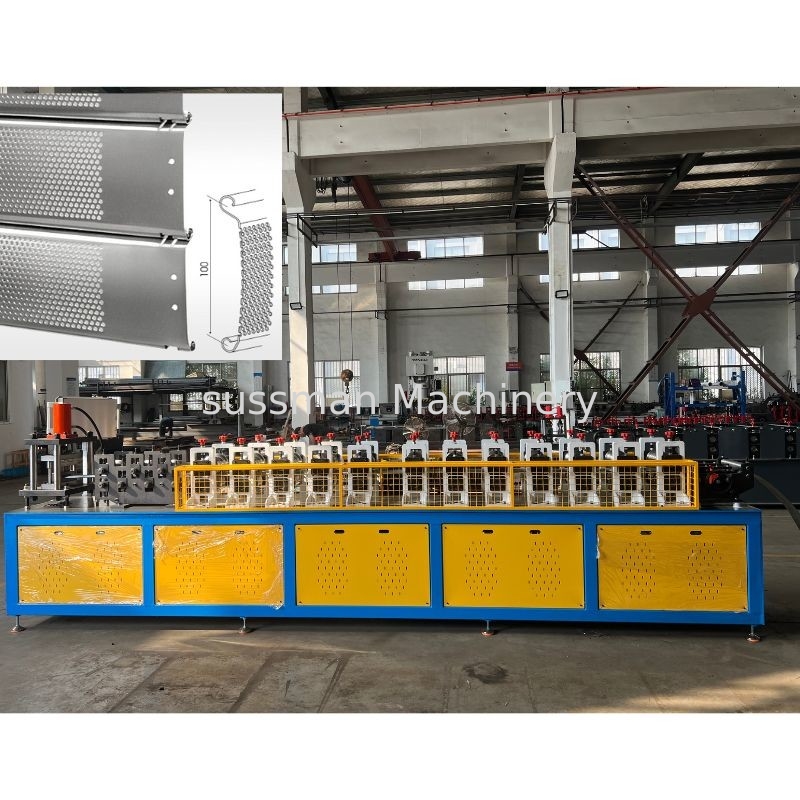

ISO Certificate 75mm 100mm Shutter Galvanized Metal Industrial Rolling Shutters Roll Forming Machine
Shutter Door Technical Parameter
|
Description
|
Offered specification
|
| Product Line speed |
8-15m/min |
| Suitable material thickness |
0.7-1.2mm steel |
| Raw material |
Galvanized coils yield strength≤G250MPa |
| Material width |
As profile |
| Decoiler |
3 Ton passive decoiler |
| Roller stations |
12 stations
|
| Roller material |
Bearing steel, quenching treatment |
| Shaft diameter |
Φ60mm ,material is 45# forge steel |
| Transmission |
By chain one inch 20A single chain |
| Material of chain |
45# forged steel with frequency quenching, 12A |
| Cutting system |
Hydraulic cutting blade cr12mov with quench HRC58-62° |
| Main motor power |
5.5kw |
| Motor power of hydraulic station |
4kw |
| Hydraulic station pressure |
12Mpa |
| Tolerance |
6m+-1.5mm |
Shutter Door Main Components
| S.N |
Equipment name
|
Quantity |
| 1. |
3 Tons manual un-coiler
|
1 set |
| 2. |
Feeding device
|
1 set |
| 3. |
Main roll forming machine with ribs
|
1 set |
| 4. |
Hydraulic station
|
1 set |
| 5. |
Control system (including control box)
|
1 set |
| 6. |
Out tables
|
2 sets |
| 7. |
Spare Parts
|
2 packages |
Profiles of Shutter Door
The profile size of rolling shutter slats (the individual horizontal sections of the shutter) can vary depending on the material, type, and intended application.
Industrial Shutters
- Industrial rolling shutters require even larger, sturdier profiles to withstand heavy usage and secure larger openings.
- Standard profile sizes include:
- 75 mm (3 inches)
- 100 mm (4 inches)
Shutters often have holes for practical and aesthetic reasons:
-
Ventilation: Holes allow air to pass through, providing ventilation while maintaining privacy or protection from the elements.
-
Light Control: Small holes in shutters can let in natural light, illuminating a space while reducing the harshness of direct sunlight.
-
Visibility: In some designs, holes provide a way to look outside without fully opening the shutters, offering a level of security and convenience.
-
Aesthetic Appeal: Decorative holes or patterns can add visual interest to the shutters, enhancing the overall appearance of a building.
-
Pressure Equalization: In storm shutters, small holes help reduce pressure build-up caused by strong winds, minimizing the risk of damage to the shutters or the structure they protect.
Advantage for Shutter Door
A metal rolling shutter door is a type of door that consists of interlocking metal slats or panels that roll up into a compact coil above the doorway when opened.
These doors are widely used for security, durability, and ease of operation and are popular in commercial, industrial, and residential settings.
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
