EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine

Place of Origin	Wuxi, China
Brand Name	SUSSMAN
Certification	CE, ISO, SGS
Model Number	SM-SD

Product Details

Name:

Metal Shutter Door Roll Forming Machine

Material Thickness:

0.6-1.0mm Galvanized Steel

Roller Station:

About 12 Stations

Working Speed:

0-12m/min

Main Motor Power:

5.5KW

Hydraulic Station Power:

4KW

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiate

Packaging Details

film+steel

Delivery Time

About 60 days

Payment Terms

L/C, T/T

Supply Ability

30 sets/month

Product Description

EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine

The EUROPEA shutter door profile 100×23mm refers to a European-style rolling shutter slat with the following dimensions:
* Overall Width: 100 mm

* Profile Height (Depth/Thickness): 23 mm

This type of slat is typically used in industrial and commercial roller shutter doors, where a larger and stronger profile is
needed for greater door coverage, durability, and wind resistance.

----------------------------------------------------------------------------------------------------------------------------------

✅ Applications
* Industrial roller shutter doors

* Warehouse and logistics centers

* High-traffic commercial shutters

* Factory gates or garages

* Security entrances

----------------------------------------------------------------------------------------------------------------------------------

✅ Advantages
* High Strength: The 100 mm width and 23 mm depth provide a robust slat ideal for large openings.

* Wind Resistance: More resistance against deformation under pressure or impact.

* Reduced Number of Slats: Covers more area per slat, speeding up rolling and installation.

* Aesthetic Design: Sleek European look with options for perforation and powder coating.

----------------------------------------------------------------------------------------------------------------------------------

✅ Technical Specifications (Typical for 100×23 mm EUROPEA Slat)

Specification	Detail
Material	Galvanized Steel or Aluminum
Thickness	0.8 mm – 1.2 mm (customizable)
Slat Width	100 mm
Profile Height	23 mm
Effective Coverage	~100 mm (after interlock)
Weight per Meter	Depends on thickness and material
Finish	Powder Coated / Painted / Anodized
Interlocking System	Hook-style or ball-and-socket interlock
Holes/Slots	Optional ventilation or vision slots
Bottom Bar	Aluminum or steel reinforced, with rubber


			No.
			Item Name
			Specification

			1
			Feeding width
			Customized as customer' drawing

			Effective width
			Customized as customer' drawing

			2
			Thickness of panel
			0.7-1.2 mm coil sheet

			3
			Roller station
			12 stations

			4
			Shaft Diameter
			60 mm

			5
			Productivity
			8-12 m/min

			6
			Rollers' material
			45# steel with 0.05mm chrome

			7
			Shaft material
			45# steel with 0.05mm chrome

			8
			Weight
			3 tons

			9
			Size
			4.5*0.5*0.8m

			10
			Voltage
			380V 50Hz 3phases

			11
			Control
			PLC

			12
			Decoiler
			3 tons

			13
			Motor
			5.5 kw

			14
			Driving way
			Chain transmission

			15
			Cutting system
			Hydraulic cutter

Working flow:

Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting→ Run out table
Machine List

Name	Quantity (set)
3ton passive de-coiler	1set
Hydraulic cutting device	1set
Main roll forming machine with lubrication	1set
Hydraulic cutting device	1set
Run out table	1 set
Control box	1set

Profile Drawing

EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine 2

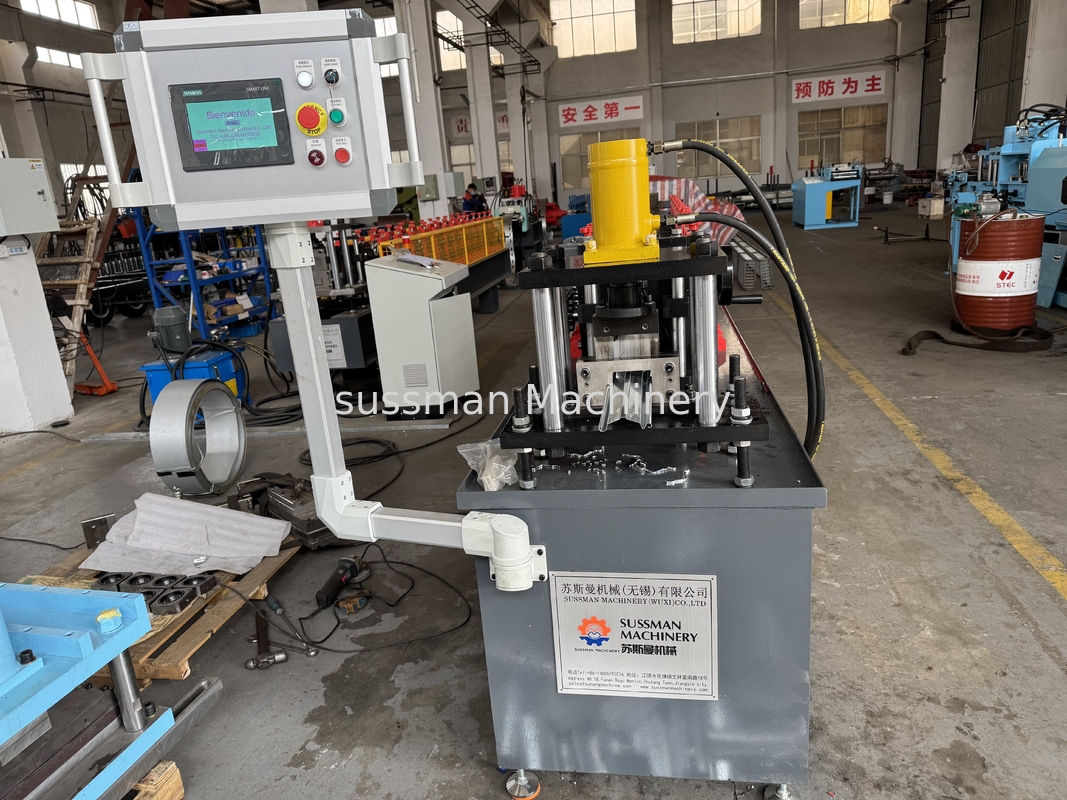

Machine Shows

EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine 3

7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal 5

Packaging and Delivery

Before loading to the container, we will check the machine first;

Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery;

Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea;

At last, we will take photos for customer when loading to container.

EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine 5

EUROPEA 0.6-1.0mm Galvanized Steel Rolling Shutter Door Roll Forming Machine 6
