Galvanized Steel 60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized

Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized
Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized

Large Image :  Galvanized Steel 60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized

Product Details:
Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE
Model Number: MSDB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 55-65 days after deposit
Payment Terms: T/T L/C
Supply Ability: 10 sets per months

Galvanized Steel 60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized

Description
Material Thickness: 0.4-1.2mm Forming Speed: 12-15 M/min
Main Motor Power: 7.5Kw Forming Stations: About 20 Stations
High Light:

cold roll forming machine

,

rolling form machine

Galvanized Steel 60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized





Advantage for Octagon Pipe



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable



Applications

Be the series part of shutter door.



Octagon Pipe Technical Parameter

  1. Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa
  2. Forming speed: 10-12M/min (EXCLUDING CUTTING STOP TIME)
  3. Forming roller: about 20stations
  4. Main motor power: 7.5KW
  5. Roller material: 45# forged steel, surface coated with chrome
  6. Main shaft material: 45# steel
  7. Main axis dia.: 70mm
  8. Hydraulic cutting pressure: 10-12Mpa
  9. Cutting method: Electric powered saw cutting, cutting after roll forming.
  10. Cutting blade material: Cr12 quenching treatment
  11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
  12. Wig welding device
  13. water cooling system

Octagon Pipe Main Components



Serial No. Commodity & Description Quantity
1 3T manual uncoiler 1 set
2 feeding guiding 1 set
3 Main roll forming machine 1 set
4 Output table 1 set
5 Main drive gear box 1 set
6 Fly saw cutting 1 set
7 Controlling system (including cabinet) 1 set
8 Water cooling system 1 set
9 Cassette 2 sets


Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables


Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized 0

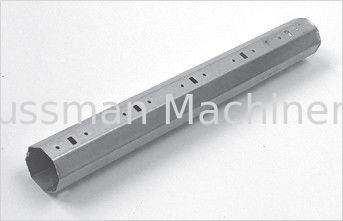

Profiles of Octagon Pipe

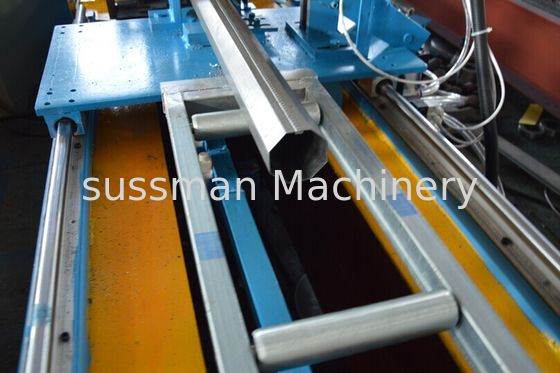

 Machine Photo





Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized 2



Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized 3



Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized 4



Galvanized Steel  60MM 70MM Octagon Pipe Shutter Door Roll Forming Machine High Speed Customized 5
