Product Details:
|
Name: | Insulated Roller Shutter Garage Door Roll Forming Machine | Material: | Aluminum Coil And Colorful Galavanize Steel |
---|---|---|---|
Material Thickness: | 0.3-0.6mm | Forming Stations: | 46 Stations |
Roller Material: | Gcr15, Quench HRC58-62 Plated Chrome | Dirve System: | Chain Drive Or Gearbox |
Power Supply: | 380V, 50Hz, 3Phase | Forming Speed: | 8-15m/min |
Machine Weight: | About 7 Tons | Machine Size: | 24mx0.6mx0.9m |
High Light: | sheet metal roll former,rolling form machine |
Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission
Technical Parameter
Material type aluminum coil plate and colorful galvanize steel
Material thickness: 0.3- 0.6mm. coil width 140mm
Material yield strength: ≤G200Mpa
Main specification
a. Decoiler
Manual un-coiling Capacity: ≤3 T
b. Main datas of forming machine
Forming stands: about 46 stands
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ40mm
Main axial material: No 45 steel HRB260-280
Driving part is gear box transmission
Frequency conversion decelerating Delta
PLC control: fix length control ±1mm (Delta)
Main components: CHINT, DELIXI
The precision of roller: less than ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)
Machine basement material: H beam
Foaming machine: 1 set (China top brand)
Pneumatic flying punching machine 1 set
Material of cut: Cr12Mov Quench: HRC58-62
Automatic punching device 1 set
Finished products table: 1 set
Working speed: 8-15m/min
dimensions of main forming machine
24000mm× 600mm × 900mm
Machine weight: about 7T
Main Components
1 |
Decoiler |
1 set |
2 |
Guide Feeding device |
1 set |
3 |
main forming machine |
1 set |
4 |
Foaming machine (just foamed one owned) |
1 set |
5 |
Straighten device |
1 set |
6 |
flying saw cutting machine |
1 set |
7 |
finished products table |
1 set |
8 |
PLC control system |
1 set |
9 |
Spare Parts And Tools |
1 set |
Working Flow of Roll Forming Machine
Decoiler—feedingdevice—mainforming—PUinjection---straightendevice—punching—FlysawCutting ---run out table
Profile of product

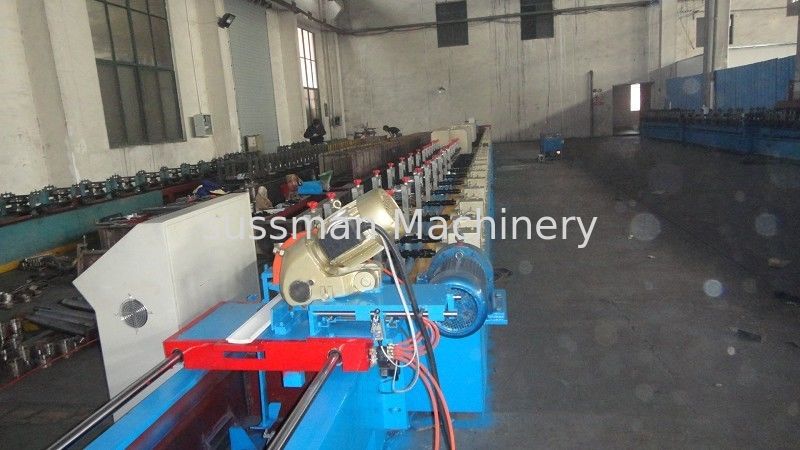

Photo Gallery
