High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe

High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe
High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe

Large Image :  High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe

Product Details:
Place of Origin: China
Brand Name: SUSSMNA
Certification: SGS.ISO,CE
Model Number: SS-OP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packing film and steel
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month

High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe

Description
Name: 70mm Octagon Shaft Roll Forming Machine Material Thickness: 0.5-1.2mm
Forming Stations: 20 Stations Roller Material: GCr15 Steel
High Light:

cold roll forming machine

,

rolling form machine

High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe




Machine Technical Data

  1. Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa
  2. Forming speed: 10-12M/min (EXCLUDING CUTTING STOP TIME)
  3. Forming roller: about 20stations
  4. Main motor power: 7.5KW
  5. Roller material: 45# forged steel, surface coated with chrome
  6. Main shaft material: 45# steel
  7. Main axis dia.: 70mm
  8. Hydraulic cutting pressure: 10-12Mpa
  9. Cutting method: Electric powered saw cutting, cutting after roll forming.
  10. Cutting blade material: Cr12 quenching treatment
  11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
  12. Wig welding device
  13. water cooling system

 Production Line Machine List


Serial No.

Commodity & Description

Quantity

1

3T manual uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set

9

Cassette

2 sets


Standard Profile :

Working Flow of Octagon Pipe Roll Forming Machine


  Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

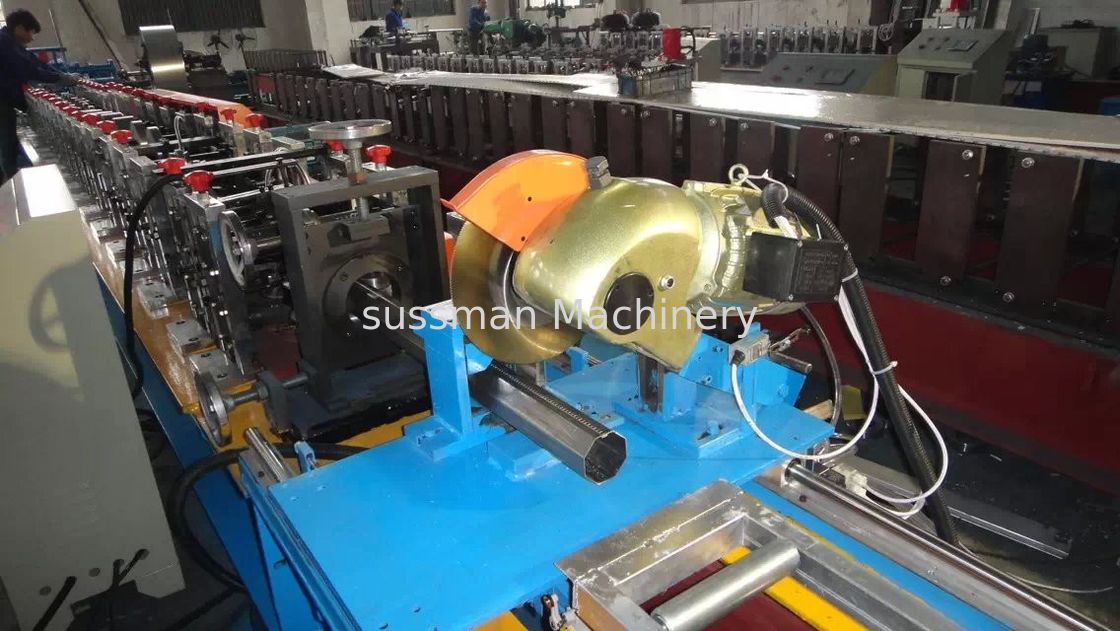

 Photo Gallery

High Speed Roller Shutter Door Roll Forming Machine 70mm Steel Octagon Shaft Pipe 3


Octagon Pipe Shutter Door Roll Forming Machine 7.jpg

Application
