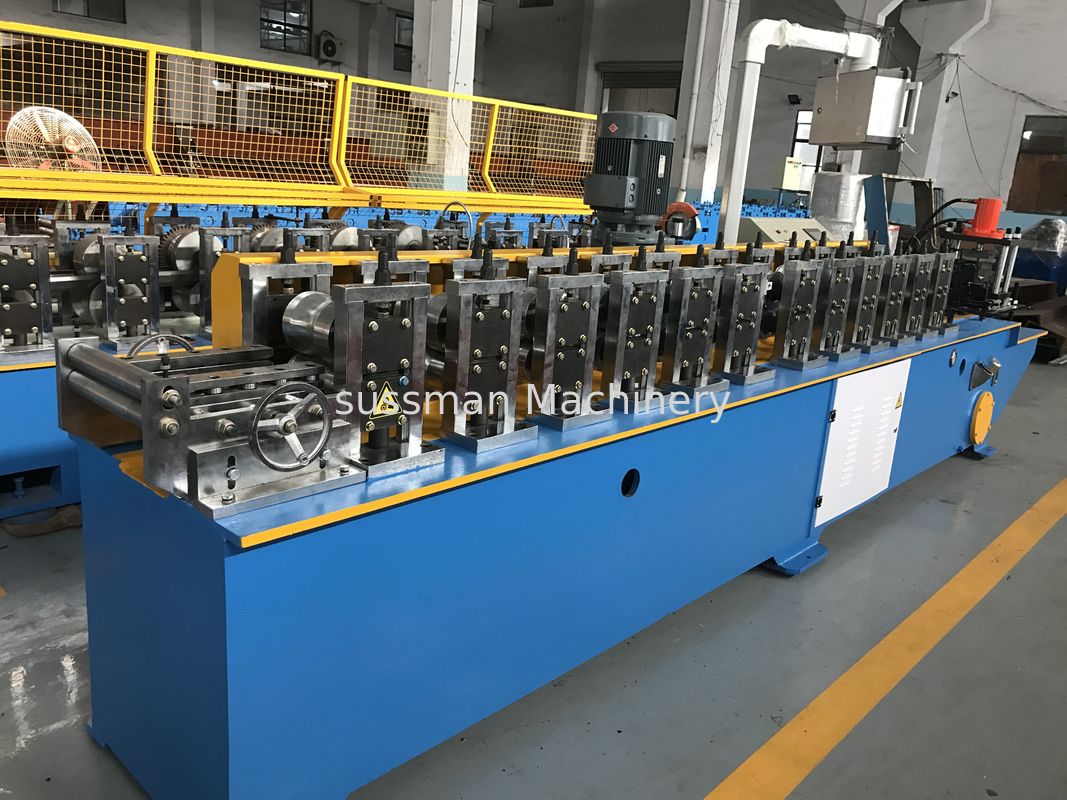

Metal Shutter Door 12 Stations Roll Forming Machine PLC Control System
Door Rail Main Components
S.N | Equipment name |
Quantity |
1. | 3T passive un-coiler |
1 set |
2. | Feeding and leveling device |
1 set |
5. |
Main roll forming machine 12 stations drived by chain
|
1 set |
6. | Hydraulic cutting |
1 set |
7. | Control system (including control box) |
1 set |
8. | Out tables |
2 sets |
9. | Water cooling system |
1 set |
Technical Parameter
Main parameter of stud&truss& furring roll forming machine | |
Suitable to process | Color steel plate |
Width of the plate | As customer need |
Thickness of the plate | 0.5-1.2mm |
De-coiler | Manual one, can load 5 tons raw material |
Rollers for forming | 12 rows |
Material of the cutting blade | Cr12 |
Hydraulic cutting power | 3kw |
Processing precision | Within 1.00mm |
Control system | Delta PLC control |
Side panel of machine | 14mm |
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail
Loading Pics
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
