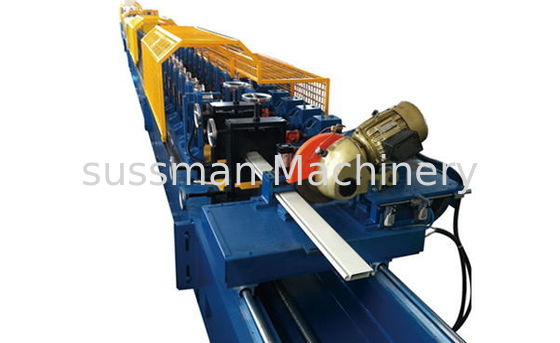

3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness

3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness
3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness

Large Image :  3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness

Product Details:
Place of Origin: China
Brand Name: SUSSMAN
Certification: SGS.ISO,CE
Model Number: SS-PD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire.
Delivery Time: Shipped in 70 working days after payment
Payment Terms: L/C, T/T,
Supply Ability: 10 sets per month

3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness

Description
Roller Stations: 38 Stations Material Thickness: 0.27-1.2mm
Forming Speed: 8-15m/min Cutter Type: Hydraulic Flying Saw
Power Supply: 380V, 50Hz, 3Phase Transmission Way: Chain
High Light:

cold roll forming machine

,

rolling form machine

PU Shutter Door Roll Forming Machine





Machine Technical Data



1. Steel Sheet Thickness: 0.27--1.2mm (depend on requirement )



2. Cutting: fly saw cutting



3. Transmission way: chain drving



4. Material of blad: Cr12, quenching treatment



5. Capacity of Decoiler: 3 ton decoiler



6. Forming Speed: 8-15m/min



7. Roller Groups: 38 stations



8. Roller Material: GCr15 grade steel, quenching treatment



9. Material: color-coated galvanized steel



10. Principal Axis: 45# high grade steel with quenching treatment



11. Main Motor Power: 11 Kw



12. Power supply: 380V, 50Hz, 3Phase


Production Line Machine List




Commodity & Description

Quantity



3T manual uncoiler

1 set



Feeding guiding

1 set



Main roll forming machine

1 set



Output table

2 sets



Main drive gear box

1 set



Fly saw cutting

1 set



Controlling system (including cabinet)

1 set



Water cooling system

1 set



Cassette

2 sets



Standard Profile :





3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 0







3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 1



3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 2



3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 3







Loading picture



 3 Ton Manual Decoiler PU Shutter Door Roll Forming Machine 0.27 - 1.2mm Thickness 4





FAQ

1). Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Besides, the width is adjustable.

2). Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3). How to visit your company?
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Wuxi Station (30 minutes), then we can pick up you.
