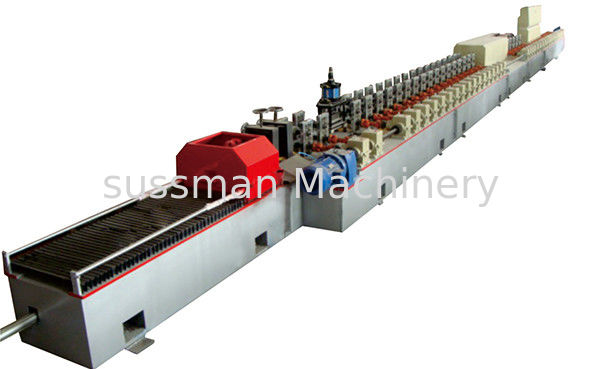

Hydraulic Flying Saw Cutting PU Shutter Door Roll Forming Machine PLC Fully Automatic

PU Shutter Door Roll Forming Machine


Technical Parameter

1. Steel Sheet Thickness: 0.27-1.mm (depend on requirement )

2. Cutting: fly saw cutting

3. Transmission way: chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton hydraulic decoiler

6. Forming Speed: 8-15m/min

7. Roller Groups: 38 stations

8. Roller Material: GCr15 grade steel, quenching treatment

9. Material: color-coated galvanized steel

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

Machine List


Standard Profile





Working Flow

Decoiler--feeding device--main forming--PU injection--straighten device--punching--Fly saw Cutting ---run out table



 Photo Gallery



Warranty, Year warranty

     During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
     We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
