Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine

Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine
Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine

Large Image :  Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine

Product Details:

Place of Origin: Wuxi,China
Brand Name: Sussman
Certification: SGS,CE,ISO
Model Number: SM-SD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Main machine naked,control system was covered by plastic film
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Forming Steps: 12 Steps Material: Galvanized Coils And Blank Steel
Thickness: 0.7-1.2mm Diameter Of Rollers: 150mm
Material Of Rollers: Gcr15 Dimension Of Machine: 4500*800*1000mm
High Light:

cold roll forming machine

,

rolling form machine

Roller 12 Steps Rolling Shutter Slat Door Integrated Machine for Australia





Description

offered specification

Material thickness

0.7-1.2mm

Raw material

Galvanized coils yield strength ≤G250MPa

Forming speed

8-15m/min

Decoiler

3 Ton passive decoiler

Material of main shaft

45# high quality steel

Levelling device

7 roller levelling including 3 top rollers and 4 bottom rollers

Cutting

hydraulic cutting; quenching HRC58-62

Motor power of hydraulic station

4kw

Hydraulic station pressurre

12Mpa

Tolerance

6m+-1.5mm

Machine Frame

H Beam Steel





Working flow



De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table





Machine component



3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg




Leveling device


1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm





Hydraulic station



1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW



Hydraulic Cutting



1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm



Control Box



(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)



Output Table


Length : 2m
Quantity: 2 units



Package& Delivery



We fixed our machine by steel wire and all of the machine is by pplastic film

 Delivery time: 60 days after deposit

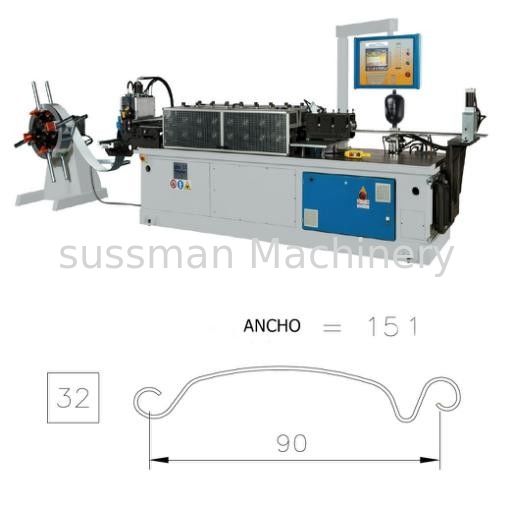

Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine 0

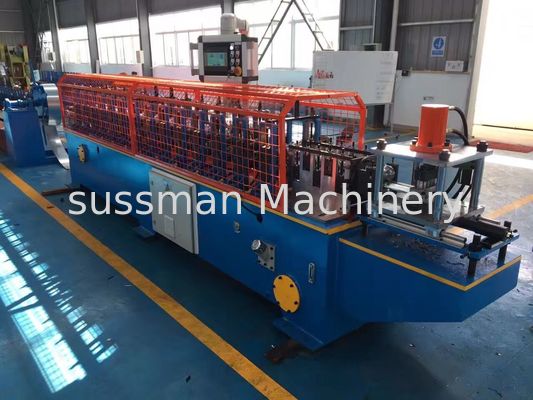

Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine 1

Roller 12 Steps Roller Shutter Door Machine Integrated Shutter Making Machine 2
