Product Details:
|
| Forming Steps: | 12 Steps | Material: | Galvanized Coils And Blank Steel |
|---|---|---|---|
| Thickness: | 0.7-1.2mm | Material Of Rollers: | Gcr15 |
| Dimension Of Machine: | 4500mm*500mm*800mm | Electronic Control: | Plc Control Panasonic Japanese Brand |
| Drive System: | Chain Drive | ||
| High Light: | sheet metal roll former,rolling form machine |
||

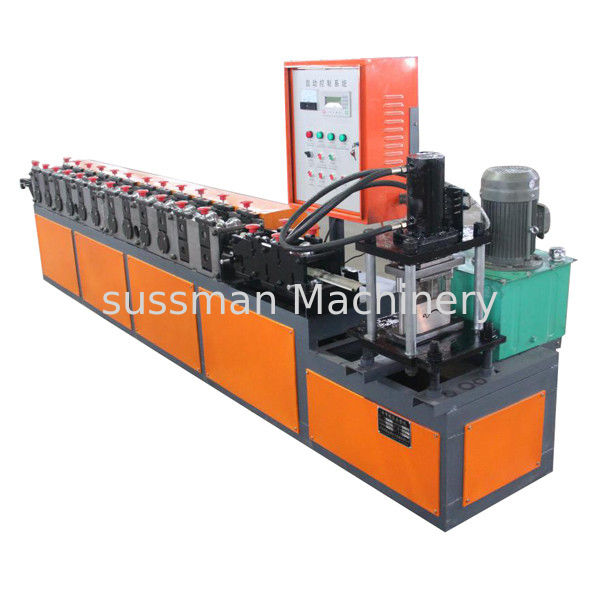

Chain Transmission Metal Rolling Shutter Door Slats Making Machine 5.5KW
|
Description |
offered specification |
|
Material thickness |
0.7-1.2mm |
|
Raw material |
Galvanized coils yield strength ≤G250MPa |
|
Forming speed |
8-15m/min |
|
Decoiler |
3 Ton passive decoiler |
|
Material of main shaft |
45# high quality steel |
|
Levelling device |
7 roller levelling including 3 top rollers and 4 bottom rollers |
|
Cutting |
hydraulic cutting; quenching HRC58-62 |
|
Motor power of hydraulic station |
4kw |
|
Hydraulic station pressurre |
12Mpa |
|
Tolerance |
6m+-1.5mm |
|
Machine Frame |
H Beam Steel |
| Drive way | Chain Drive |
| Main power | 7.5KW |
| Machine weight | 3 tons |
|
Machine size |
4500*500*800 |
|
Control system |
PLC |
Working flow
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table
Machine component
| Name | Quantity |
| Leveling device | 1 set |
| 3T Passive De-coiler | 1 set |
| Hydraulic station | 1 set |
| Hydraulic Cutting | 1 set |
| Control Box | 1 set |
| Output Tables | 2 sets |
Profile drawing
Package& Delivery
We fixed our machine by steel wire and all of the machine is by plastic film
Delivery time: 60 days after deposit
Our advantage
a. We as a manufacturer are Specialized in all kinds of cold roll forming machine So for the design and produce there are much experience and professional people.
b. Customers’design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c. Panasonic PLC system:Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
Our Services
Before ordering
We can help to analyze the machine in your market. Which one is popular and which one will be popular.
We can confirm all details of roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.
During production
We can send the pictures to show you the schedule of your roll forming machines.
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion
After-sale service
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
