Sussman Machinery (Wuxi) Co., Ltd.
| Place of Origin: | Wuxi Jiangsu China |
|---|---|
| Brand Name: | Sussman |
| Certification: | CE |
| Model Number: | SM-DR |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard packing |
| Delivery Time: | 60days after deposit |
| Payment Terms: | T/T L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 10 sets per months |
| Material Thickness: | 1.5mm Galvanized | Forming Speed: | 10 M/min |
|---|---|---|---|
| Main Motor Power: | 11Kw | Forming Stations: | 20stations |
| Dimension(L*W*H): | 7m*0.6m*1m | Hydraulic Cutting Power: | 4kw |
| Material Of Cutting: | CR12 With Quench Treatment | Electric Source: | 220V, 60HZ,3 Phase Also Can Satisfy Customer’s Require |
| Control System: | PLC Panasonic With Touch Screen | ||
| High Light: | sheet metal roll former,rolling form machine |
||

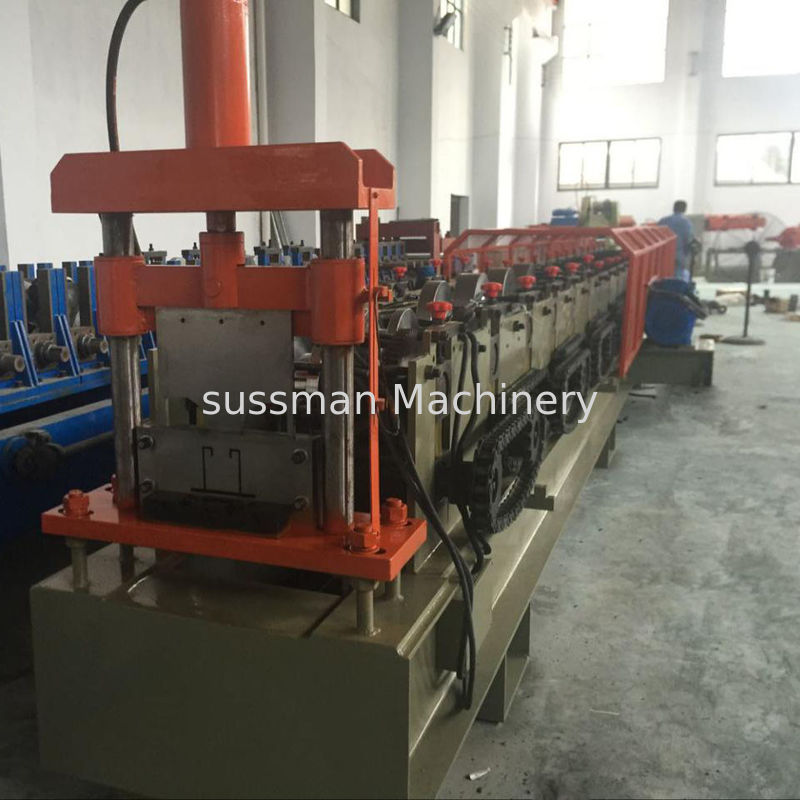

Ceiling Rail System Shutter Door Roll Forming Machine , Ceiling Batten Channel Metal Roofing Machine
Technical Parameter
| Items | Specifications | Remarks | |
| Material of coil | Material Thickness | 1.5mm galvanized | |
| Un Coiler | 3 tons manual | ||
| Forming system | Rolling Speed | 10 m/min | |
| Roller Stations | 20 stations | ||
| Roller Material |
45# Steel with quenching 60mm shaft |
||
| Maim Motor Power | 11 kw | ||
| Hydraulic cutting Power | 4 kw | ||
|
Cutting |
Material Of Cutting | CR12 with quench treatment | |
| Hardness | HRC58-62 | ||
| Tolerance | +-1.5mm | ||
| Electrical control system | Electric Source |
220V, 60HZ,3 phase |
|
| Control System | PLC (Panasonic) as list in the note | ||
| Weight | About 5.5 tons | ||
| Way Of Drive | 1 inch single chain | ||
| Size of machine | Length 7000mm* Width 600mm* Height 1000mm |
Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
3T manual un-coiler |
1 set |
| 2. |
Main roll forming machine |
1 set |
| 3. |
feeding and leveling device |
1 set |
| 4. |
Hydraulic cutting |
1 set |
| 5. |
Control system (including control box) |
1 set |
| 6. |
Out tables |
2 sets |
Working Flow
Loading Pics
Service and Terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 75 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
